Joeny Holdings Limited Introduces UJA Delta Series

Joeny Holdings Ltd is pleased to introduce the first set of the UJA Delta Series; DS-001, DS-002, DS-003, DS-004 and DS-005 to the Nigerian market.

Designed with the highest international Engineering standards to provide production security with the most cost-effective value available in the market today.

They are easy to use, do not require explosives or redress kits, enabled with smart pressure sensor and noble surface treatment to withstand sandy production environment.

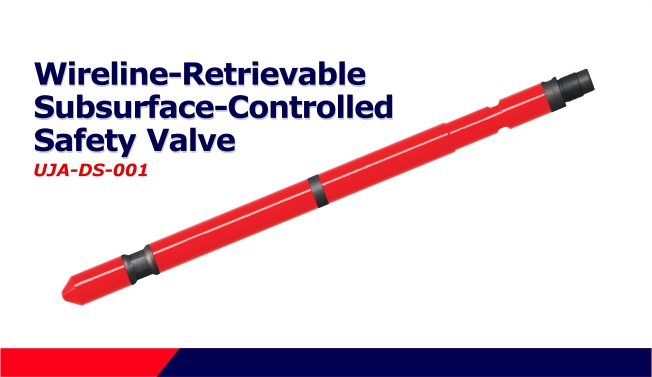

Wireline-Retrievable Subsurface Controlled Safety Valve

The Joeny Model ‘UJA-DS-001’ is a Wireline-Retrievable Subsurface- Controlled Safety Valve (WRSCSV) actuated by the characteristics of the well (tubing pressure at the WRSCSV).

This valve model is ideal to be used inside the tubing where it is not possible to provide a hydraulic supply from the surface to actuate the valve. Based on set trigger pressure, this valve will remain open to allow production to flow to the surface.

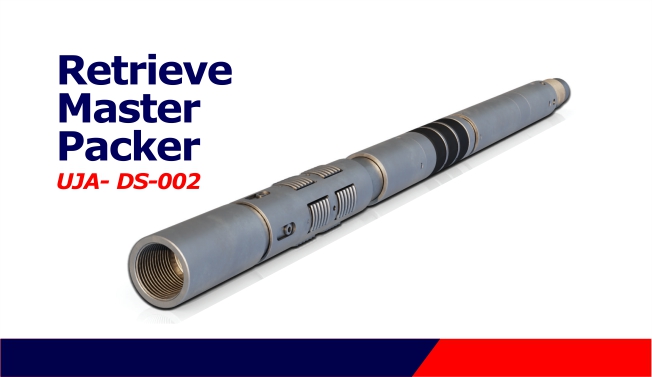

Retrieve Master Packer

The UJA DS-002 is a Retrieve Master Packer that combines the features of a Wireline Set Packer with the versatility of a Retrievable Packer. Used with safety valve mounted below packer for sub-surface safety valve production applications.

The packer may be used as a temporary Bridge Plug when run with a Nok-Out Assembly, and then converted for production or testing.

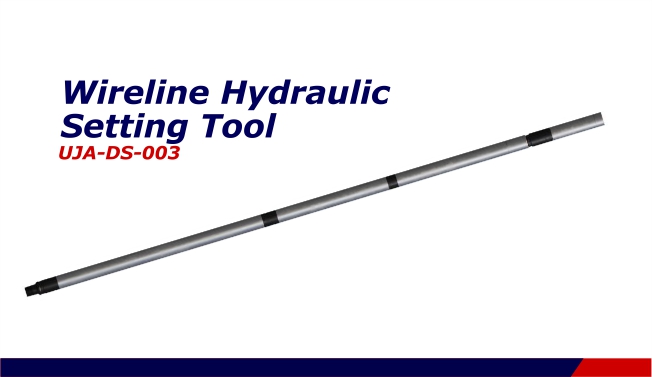

Wireline hydraulic Setting tool

The UJA-DS-003 is a Wireline Hydraulic Setting Tool. It is a pull up activated setting tool ran on wireline or slickline used to set packers which are normally set on wireline or tubing. The UJA-DS-003 Setting Tool uses a bottom connection identical to the Baker E-4 wireline setting tools.

The tool is standard equipped with pistons and is designed so additional piston sections may be added to lower the necessary setting pressure.

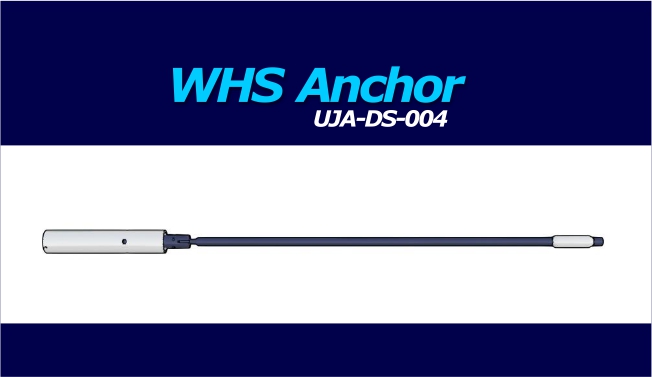

WHS Anchor

The WHS Anchor is specifically designed to anchor the Joeny Wireline Hydraulic Setting Tool (UJA DS-003) to deploy downhole equipment.

The anchor is set and released with axial (upwards and downwards motion) making it ideal for wireline or braided line applications, or when rotating conventional tubing or hydraulic pressure is impractical.

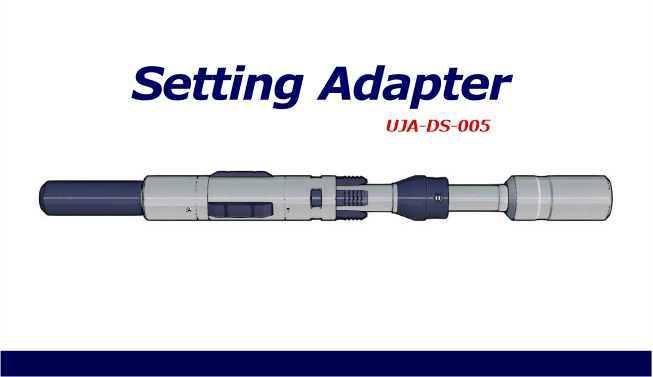

Setting Adapter
